GORE® Fiber Optic Cables for Defense Aircraft
For aviation high-bandwidth requirements, we’ve packaged standard optical fibers in robust, space-saving constructions with an exceptional balance of properties. Gore’s Simplex and ribbon versions offer improved reliability and longevity over competitors. They’re proven to transmit instant data and video giving pilots and other aircrew maximum situational awareness during critical missions.
연락처
+1 800 626 7708
리소스 라이브러리
Data Sheet: GORE® Fiber Optic Cables (1.8 mm Simplex) for Aircraft
Data Sheets, 1.06 MB
To meet the challenges of the aerospace industry’s most demanding environments and applications, W. L. Gore & Associates offers GORE Fiber Optic Cables (1.8 mm Simplex) for Aircraft. These rugged aerospace fiber optic cables guard against extreme temperatures, mechanical shock and crushing force to provide strong signal transmission for a wide variety of avionics network systems and related applications.
English (U.S.)
Overview
HIGH-BANDWIDTH SIGNALS
With higher bandwidth requirements rising, aerospace fiber optic cables must transfer lots of data and video reliably so aircrew can maintain communication and react accordingly to the situation at hand. Cables also must be smaller and lighter to fit in limited aircraft areas.
GORE Fiber Optic Cables offer various Simplex and ribbon versions with single- and multi-mode core types up to OM5 to meet your specific application needs. Delivering strong signals, each version of our military aircraft fiber optics can easily accommodate bandwidth-intensive requirements to support next-gen aircraft data and video architecture.
IMPRESSIVE LEVEL OF ROBUSTNESS
We offer a higher level of fiber optic cable protection that shields the core. They’re proven to guard against rigorous installation, crushing force, high-intensity vibration, extreme temperatures, mechanical shock, plus more. All of our versions meet and even exceed stringent aerospace industry standards for durability and optical performance.
Unlike competitors, our rugged fiber optic cables are smaller, lighter and routable without losing their strength and signal quality. They balance strength, size, weight and flexibility to maintain fast, stable data and video transfer even in complex, space-limiting installation scenarios.
Whether you choose our robust Simplex or ribbon versions, GORE Fiber Optic Cables offer the military complete reliability in avionics for mission readiness, safety and effectiveness.
Features & Benefits
GORE Fiber Optic Cables are engineered with unique features that make them more durable against challenging environmental factors and aircraft conditions, including:
- Impact- and crush-resistant buffering systems
- chemically inert and temperature-resistant materials
- space-saving, highly flexible cable diameters
Our aerospace-grade fiber optic cables provide aircraft system architects and engineers with many benefits that improve electrical, mechanical and environmental performance such as:
- secure, high-bandwidth data/video transmission with low optical loss
- high level of robustness and extended life with unique buffering systems
- proven resistance to high impact, crushing, abrasion, vibration, shock and more
- proven to exceed new stringent EN4641-301 and JN1177 durability requirements
- easier routing with more flexibility and tighter fiber optic bend radius protection
- weight and space savings with smaller, lighter constructions
- variety of single/multi-mode core types from OM1 to OM5 to meet aerospace fiber optic applications
- compatible with a variety of high-speed connector systems and backshells
- selected pre-qualified samples with short lead times for prototyping and evaluation
- low risk based on validated product performance in real-world conditions
For more information about the features and benefits of our cables, contact a Gore representative today.
1.8 mm Simplex
HIGH IMPACT & CRUSH RESISTANCE
Our most popular award-wining version offers many advantages of a fiber optic cable. Built with a remarkable buffering system, Our 1.8 mm Simplex is proven to resist high weight impact, crushing, abrasion and kinking compared to other aerospace fiber optic cable assemblies. This version is also proven to endure high-intensity vibration and mechanical shock in extreme temperatures without optical loss.
Our compact fiber optic data cable exceeds new stringent EN4641-301 and JN1177 requirements intended originally for larger, more rugged designs on 10+ up to 100 Gb/s avionics digital networks.
Gore's materials reduce the force needed to move the cable’s fiber under compression, optimizing installation and signal transmission while enhancing termination with many standard high-speed connector systems.
PROVEN PERFORMANCE ACROSS AIRCRAFT APPLICATIONS
GORE Fiber Optic Cables (1.8 mm Simplex) accommodate the most bandwidth-intensive aviation applications, like:
- avionics digital networks
- cabin/flight management systems
- digital video systems
- Ethernet backbone
- transceivers
- weather radar systems
Our cables can also be terminated with a variety of leading high-speed aerospace connector systems, like ARINC, MIL-STD-38999, and MIL-PRF-29504. If you have any questions or to discuss your specific application needs, including a bend-sensitive fiber option or particular fiberglass type, contact a Gore representative today.
These values demonstrate the optical, mechanical and environmental performance of GORE Fiber Optic Cables (1.8 mm Simplex) for defense aircraft.
We invite you to download the data sheet for more technical information and performance data.
Download the data sheet for technical information and qualifications summary according to EN4641-301 and JN1177 requirements.
| Optical Property | Value |
|---|---|
| Maximum Optical Loss at 850 nm dB/km | 4.0 |
| Maximum Optical Loss at 1310 nm dB/km | 3.0 |
| Mechanical / Environmental Property | Value |
|---|---|
| Jacket Material | PFA |
| Jacket Color | Violet or Yellow |
| Core Type | Single Mode or Multi-Mode, Graded Index |
| Coating Type | High-Temperature Acrylate |
| Buffering System | Expanded PTFE/Crush-Resistant Layer OD: 900 microns (Nominal) |
| Temperature Range °C | -65 to +135 |
We invite you to download our drawings to view cable characteristics, like diameter sizes, weight and tensile strength values.
| Part Number | Mode Type | Core | Cladding | Coating |
|---|---|---|---|---|
| GSC-13-84689-04 | SM (Single Mode) | 9 | 125 | 245 |
| GSC-13-84689-07 | SM (Single Mode) | 9 | 125 | 245 |
| GSC-13-84640-04 | OM1 (Multi-Mode, Graded Index) | 62.5 | 125 | 245 |
| GSC-13-84640-07 | OM1 (Multi-Mode, Graded Index) | 62 | 125 | 245 |
| GSC-13-84639-04 | OM2 (Multi-Mode, Graded Index) | 50 | 125 | 245 |
| GSC-13-84639-07 | OM2 (Multi-Mode, Graded Index) | 50 | 125 | 245 |
| GSC-13-84943-04 | OM3 (Multi-Mode, Graded Index) | 50 | 125 | 245 |
| GSC-13-84943-07 | OM3 (Multi-Mode, Graded Index) | 50 | 125 | 245 |
| GSC-13-84943-17* | OM3 (Multi-Mode, Graded Index) | 50 | 125 | 245 |
| GSC-13-85423-04 | OM4 (Multi-Mode, Graded Index) | 50 | 125 | 245 |
| GSC-13-85423-07 | OM4 (Multi-Mode, Graded Index) | 50 | 125 | 245 |
| GSC-13-85868-04 | OM5 (Multi-Mode, Graded Index) | 50 | 125 | 245 |
| GSC-13-85868-07 | OM5 (Multi-Mode, Graded Index) | 50 | 125 | 245 |
* Cable jacket material includes JN1177 marking.
GORE Fiber Optic Cables (1.8 mm Simplex) for Defense Aircraft have undergone substantial qualification testing to ensure they meet the most current industry standards and our customers’ requirements.
- ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part I: Flammability
- ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
- ARINC 802-3; Performance Requirements (GSC-13-84639, GSC-13-84640, GSC-13-84943)
- BSS7239: Toxicity
- EN3745-506; EN3745-513; JN1177: Test Methods for Crush and Impact Resistance (GSC-13-84943-07 / GSC-13-84943-17)
Fill out a short form to get samples of our pre-qualified cables in 48 hours for prototyping and evaluation. For more information about the qualifications of our cables and complimentary samples, contact a Gore representative today.
Crush-resistant layers of GORE Fiber Optic Cables (1.8 mm Simplex)
1.2 mm Simplex
RUGGED BUFFERING SYSTEM

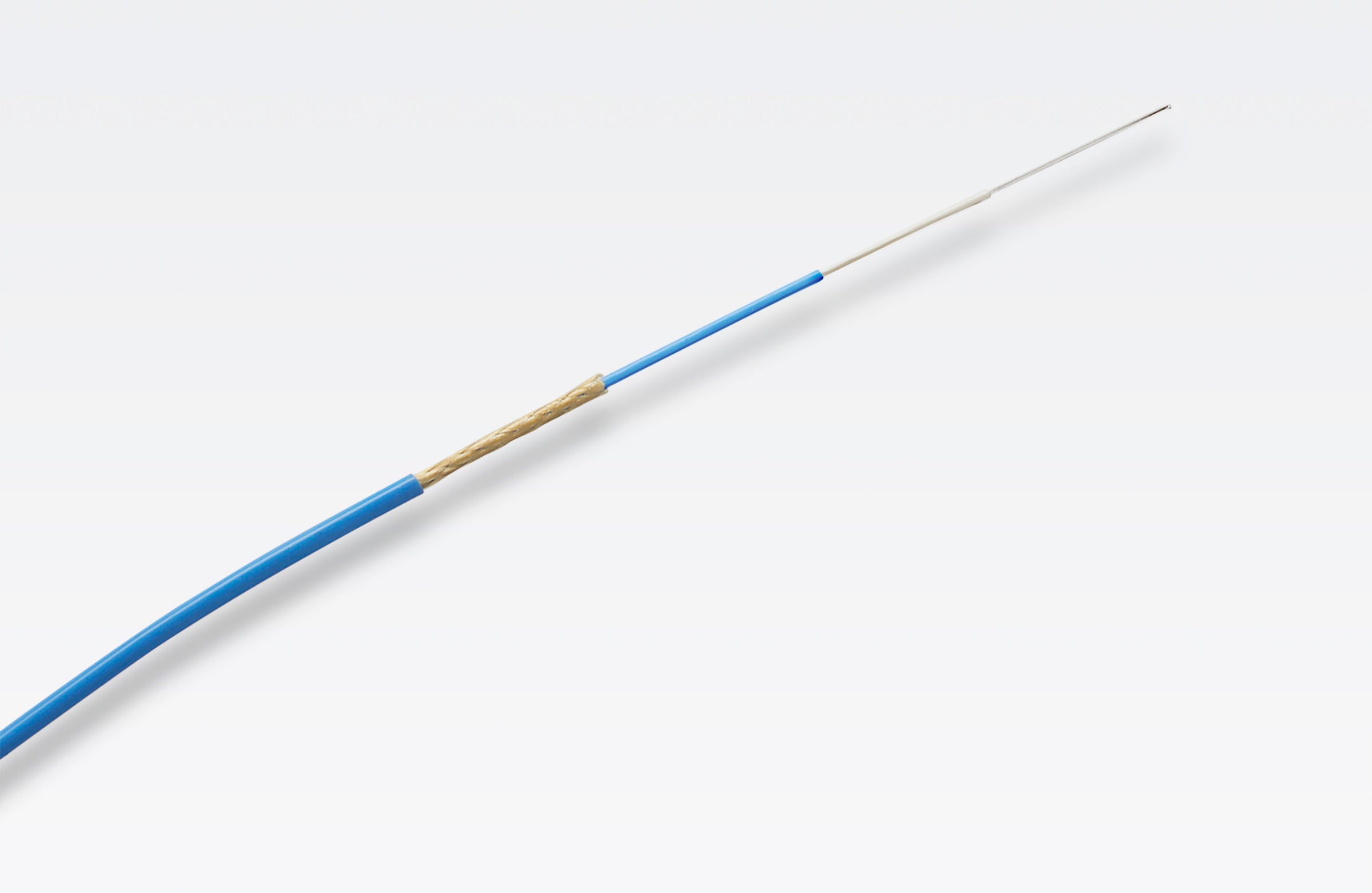

This version of our fiber optics for aerospace and military applications delivers stable optical performance with low loss for transferring high-speed digital data and video on avionics networks. Thanks to the rugged, thin buffering system, our 1.2 mm Simplex fights off routing, vibration, shock and tension that can severely impact overall system performance in aircraft.
PROVEN PERFORMANCE ACROSS AIRCRAFT APPLICATIONS
Designed to meet high-bandwidth demands for transferring long-distance data and video, GORE Fiber Optic Cables (1.2 mm Simplex) prove dependable in many airborne applications, like:
- avionics digital networks
- digital video systems
- Ethernet backbone
- flight management systems
- inside-the-box/laser pigtail
- strain-gauge systems
- transceivers
Our cables can also be terminated with a variety of leading high-speed aerospace connector systems and backshells, like ARINC, MIL-STD-38999, and MIL-PRF-29504. If you have any questions or to discuss your specific application needs, contact a Gore representative today.
These values demonstrate the optical, mechanical and environmental performance of GORE Fiber Optic Cables (1.2 mm Simplex) for defense aircraft.
We invite you to download the data sheet for more technical information and performance data.
| Optical Property | Value | ||||
|---|---|---|---|---|---|
| FON1002 | FON1003 | FON1253 | FON1307 | FON1371 | |
| Maximum Optical Loss at 1300 nm dB/km | — | — | — | ≤ 1.5 | ≤ 0.7 |
| Maximum Optical Loss at 1310 nm dB/km | ≤ 0.7 | ≤ 1.5 | ≤ 0.4 | — | — |
| Mechanical / Environmental Property |
Value | ||||
|---|---|---|---|---|---|
| FON1002 | FON1003 | FON1253 | FON1307 | FON1371 | |
| Jacket Material | Extruded FEP | ||||
| Jacket Color | Blue | ||||
| Core Type | Single Mode or Multi-Mode, Graded Index | ||||
| Coating Type | Polyimide | High-Temperature Acrylate | |||
| Buffering System | PTFE | ||||
| Temperature Range °C | -65 to +200 | -55 to +125 | |||
We invite you to download our drawings to view cable materials and characteristics, like diameter sizes.
GORE Fiber Optic Cables (1.2 mm Simplex) for Defense Aircraft have undergone substantial qualification testing to ensure they meet the most current industry standards and our customers’ requirements.
- ABD0031 (AITM 2.0005); BSS7230-F6; BSS7324-7.25; FAR Part 25, Appendix F, Part I: Flammability
- ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
- ABD0031 (AITM 3.0005); BSS7239: Toxicity
- MIL-STD-202, Method 103: Humidity
- MIL-STD-810, Method 509: Salt Fog
- MIL-STD-810, Method 510: Sand and Dust
Fill out a short form to get samples of our pre-qualified cables in 48 hours for prototyping and evaluation. For more information about the qualifications of our cables and complimentary samples, contact a Gore representative today.
GORE Fiber Optic Cables (1.2 mm Simplex)
900 micron
ROBUSTNESS WITH REDUCED SHRINK BACK
Like our other Simplex versions, these cables provide a high level of crush resistance to protect sensitive avionics. They also drastically reduce shrink back, along with shortening sample termination times. Without ever failing, our robust cables deliver quality signals with minimal loss during maintenance and flight.
Our 900 micron version also proves to be an excellent choice for inside-the-box applications because they’re slender, flexible and easy to route.
PROVEN PERFORMANCE ACROSS AIRCRAFT APPLICATIONS
With an ideal blend of slender, light size and robust construction, GORE Fiber Optic Cables (900 micron) reliably support high-speed data transfer in several applications, like:
- inside-the-box
- outside-the-box
- transceivers
Our cables can also be terminated with a variety of leading high-speed aerospace connector systems and backshells, like ARINC, MIL-STD-38999, and MIL-PRF-2950. If you have any questions or to discuss your specific application needs, including fiber options packaged with GORE® Cable Protection Systems for outside-the-box applications, contact a Gore representative today.
These values demonstrate the optical, mechanical and environmental performance of GORE Fiber Optic Cables (900 micron) for defense aircraft.
We invite you to download the data sheet for more technical information and performance data.
| Optical Property | Value |
|---|---|
| Maximum Optical Loss at 850 nm dB/km | 3.0 |
| Maximum Optical Loss at 1310 nm dB/km | 1.0 |
| Mechanical / Environmental Property | Value |
|---|---|
| Jacket Material | PEEK |
| Jacket Color | Tan |
| Core Type | Single Mode or Multi-Mode |
| Coating Type | High-Temperature Acrylate |
| Buffering System | Expanded PTFE |
| Temperature Range °C | -60 to +135 |
We invite you to download our drawings to view cable characteristics, like diameter sizes and weight.
| Part Number | Mode Type | Core | Cladding | Coating |
|---|---|---|---|---|
| GSC-13-85067-00 | OM1 (Multi-Mode) | 62.5 | 125 | 245 |
| GSC-13-85424-00 | OM4 (Multi-Mode) | 50 | 125 | 245 |
| GSC-13-85375-00 | SM (Single Mode) | 9 | 125 | 245 |
| GSC-13-85869-00 | OM5 (Multi-Mode) | 50 | 125 | 245 |
GORE Fiber Optic Cables (900 micron) for Defense Aircraft have undergone substantial qualification testing to ensure they meet the most current industry standards and our customers’ requirements.
- ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part I: Flammability
- ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
- ABD0031 (AITM 3.0005); BSS7239: Toxicity
- ARINC 802-3: Performance Requirements (GSC-13-85067-00)
Fill out a short form to get samples of our pre-qualified cables in 48 hours for prototyping and evaluation. For more information about the qualifications of our cables and complimentary samples, contact a Gore representative today.
GORE Fiber Optic Cables (900 micron)
12-Fiber Ribbon
RIGHT AMOUNT OF RUGGEDNESS
Available in three versions, each multi-channel fiber optic cable is manufactured with a composite buffering system proven to withstand volatile conditions that military aircraft typically experience during maintenance and flight. They bring consistent signal integrity with low optical loss and offer uninterrupted high-speed data and video transmission long after alternatives have succumbed to their environment.
In a rugged, slim, flexible package, our 12-fiber ribbon cables are suitable for routing and mission applications ranging from inside-the-box to outside the aircraft.
PROVEN PERFORMANCE ACROSS AIRCRAFT APPLICATIONS
Each version of GORE Fiber Optic Ribbon Cables offers the right amount of ruggedness to maximize protection and performance in a variety of applications, like:
- avionics digital networks
- digital video systems
- Ethernet backbone
- Flight management systems
- Transceivers
- Weather radar systems
Our cables can also be terminated with a variety of standard high-speed aerospace MT connector systems and backshells. If you have any questions or to discuss your specific application needs, contact a Gore representative today.
These values demonstrate the optical, mechanical and environmental performance of GORE Fiber Optic Ribbon Cables for defense aircraft. Our part numbers are identified by an asterisk (*) designating the core type, followed by an asterisk designating the number of fibers (i.e., 4, 8, or 12). Also, optical values are typical.
For exact part number values and more options of our 12-core fiber optic cable, contact a Gore representative.
We invite you to download the data sheet for more technical information and performance data.
| Optical Property | Value | |||
|---|---|---|---|---|
| FON1214/*/* | FON1256/*/* | FON1551 | FOA8100/*/* | |
| Typical Application | Inside-the-Box | Outside-the-Box | ||
| Maximum Optical Loss at 850 nm dB/km | ≤ 4.0 | ≤ 2.3 | ≤ 3.5 | ≤ 2.3 |
| Mechanical / Environmental Property | Value | |||
|---|---|---|---|---|
| FON1214/*/* | FON1256/*/* | FON1551 | FOA8100/*/* | |
| Jacket Material | Engineered Fluoropolymer | Extruded PVDF | Extruded PVDF with Strength Member | |
| Jacket Color | White | Orange | ||
| Core Type | Single Mode, Multi-Mode, or Multi-Mode, Graded Index |
Multi-Mode, or Multi-Mode, Graded Index |
||
| Coating Type | Acrylate | High-Temperature Acrylate | High-Temperature Acrylate | |
| Buffering System | PTFE | PTFE | ||
| Temperature Range °C | -60 to +85 | -55 to +125 | -55 to +125 | -60 to +125 |
We invite you to download our drawings to view cable characteristics, like diameter sizes, minimum bend radii and attenuation values.
| Part Number | Mode Type | Core/Cladding/Coating |
|---|---|---|
| FON1214/1/* | OM1 (Multi-Mode, Graded Index) | 62.5/125/245 |
| FON1214/2/* | SM (Single Mode) | 9.5/125/245 |
| FON1214/4/* | OM2 (Multi-Mode, Graded Index) | 50/125/245 |
| FON1214/5/* | OM3 (Multi-Mode) | 50/125/245 |
| FON1214/6/* | OM4 (Multi-Mode) | 50/125/245 |
| FON1256/*/* | OM1-OM3 (Multi-Mode) | 50/125/245, 62/125/245 |
| FON1551 | OM2 (Multi-Mode, Graded Index) | 50/125/245 |
| FOA8100/*/* | OM3 (Multi-Mode) | 50/125/245 |
GORE Fiber Optic Ribbon Cables for Defense Aircraft have undergone substantial qualification testing to ensure they meet the most current industry standards and our customers’ requirements.
- ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part I: Flammability
- ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
- ABD0031 (AITM 3.0005); BSS7239: Toxicity
- MIL-STD-202, Method 103: Humidity
- MIL-STD-810, Method 509: Salt Fog
- MIL-STD-810, Method 510: Sand and Dust
Fill out a short form to get samples of our pre-qualified cables in 48 hours for prototyping and evaluation. For more information about the qualifications of our cables and complimentary samples, contact a Gore representative today.
Unique Buffering Systems of GORE Fiber Optic Ribbon Cables
Videos
Watch Gore engineers in these videos and more on YouTube demonstrating the durability of GORE Fiber Optic Cables.
More Information
LEARN MORE ABOUT GORE FIBER OPTIC CABLES OR ORDER NOW
Offered in robust Simplex and ribbon versions, GORE Fiber Optic Cables meet the military’s bandwidth intensive mission requirements. For more information or to discuss your specific application needs, contact a Gore representative today.
If you’re ready to order, visit our list of distributors and explore our sample inventory to learn more about selected products and lead times. Pre-qualified complimentary samples are available within 48 hours for prototyping and evaluation.
Resources
View all resources for GORE Fiber Optic Cables for Defense Aircraft
최신 뉴스
FOR INDUSTRIAL USE ONLY
Not for use in food, drug, cosmetic or medical device manufacturing, processing, or packaging operations.
Contact Us
관련 제품
Cables & Cable Assemblies
- Ethernet Cables for Defense Aircraft
- Shielded Twisted Pair Cables for Defense Aircraft
- CAN Bus Cables for Defense Aircraft
- Quad Cables (Specialty Versions) for Defense Aircraft
- FireWire® Cables for Defense Aircraft
- Fibre Channel Cables for Defense Aircraft
- USB Cables for Defense Aircraft
- HDMI Cables for Defense Aircraft
- DVI Cables (Digital Only) for Defense Aircraft
- Cable Protection Systems for Defense Aircraft
- Abrasion Resistant Cable Jacket for Defense Aircraft
- High Performance Aerospace Wires for Defense Aircraft
- MIL-STD-1760 Assemblies for Defense Aircraft
- GORE-FLIGHT® Microwave Assemblies for Defense Aircraft
- Microwave/RF Assemblies for Defense Aircraft
- Microwave/RF Assemblies, 7 Series for Defense Aircraft
- PHASEFLEX® Microwave/RF Test Assemblies for Defense Aircraft
팔로우: GORE® Fiber Optic Cables for Defense Aircraft
